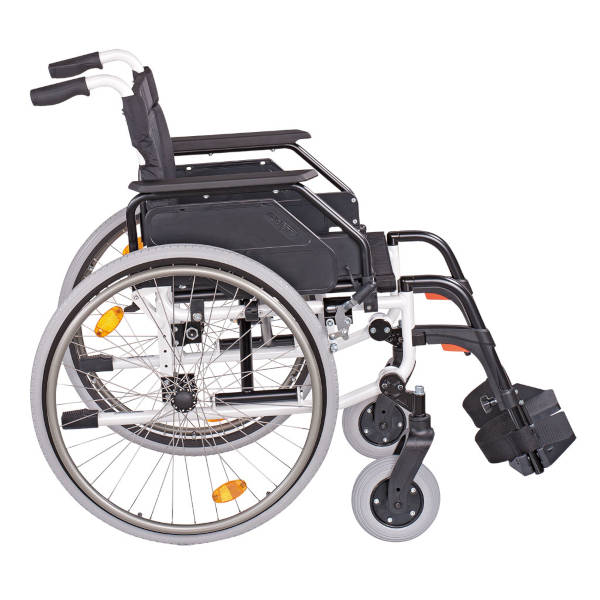

Assistive Product Caneo E

Product Type:

Manually controlled wheelchair, foldable
Lightweight wheelchair

Description:

The Caneo E lightweight wheelchair has an aluminium frame. It is suitable for passenger transport (crash tested).
Other models in the Caneo series:
Caneo B
Caneo S
Caneo L

Features / Components:

  • Frame: Aluminium, foldable
  • Push handles
  • Seat dimensions: selectable seat width, selectable seat depth
  • Side panels: swing away to the rear, Desk / long, side panel raising set (+2 cm)
  • Armrests: Desk / long, height adjustable
  • Legrests: removable, swing away to the side
  • Footrests: height adjustable, angle adjustable, with heel strap
  • Drive: push rim drive
  • Tyres: drive wheels: puncture-proof tyres; steering wheels: puncture-proof tyres
  • Brake: parking brake / drum brake
  • Other: thru axle
  • Colour:Frame: Ivory; Cover: black

Price (without guarantee):

Basic model Caneo E (with parking brake): 850,00 EUR
Basic model Caneo E (with drum brake): 1.000,00 EUR

The prices are recommended retail prices plus VAT.

SHI-Number:

SHI-Medical Technical Aids Register | 18.50.02.2108 | 18.50.02.2134

Product Information from the Manufacturer / Distributor:

Further Product Details
Further Product Details

Further Information

REHADAT does not sell any products

Please contact the manufacturer or distributor.

Manufacturer:

DIETZ GmbH
Reutäckerstr. 12
76307 Karlsbad
Germany Telephone: 07248 91860 Email: dialog@dietz-group.de Homepage: https://dietz-rehab.de/

Distributor:

DIETZ GmbH
Reutäckerstr. 12
76307 Karlsbad
Germany Telephone: 07248 91860 Email: dialog@dietz-group.de Homepage: https://dietz-rehab.de/

Sanitätsfachhandel
Örtliche Sanitätshäuser und Orthopädie-technische Fachbetriebe
Homepage: https://biv-ot.org/ueber_uns/mitglieder/sanitaetshausdatenbank/index_ger.html

Technical Data:

Overall width: SB +20 cm
Overall length: 107 - 112 cm
Overall height: 92 cm
Seat width: 39 / 42 / 45 / 48 cm; 51 cm (extra charge)
Seat depth: 40 / 44 cm
Seat height: 51 cm; 42 / 45 / 48 cm (extra charge)
Folding dimension (width): 31 cm
Seat angle: 3 degrees
Back height: 40 - 43 cm
Back angle: 3 degrees
Drive wheels: 24 inches
Steering wheels: 7 inches
Weight: 16.4 to 18 kg
Load capacity: 125 kg (up to SB 45 cm); 130 kg (up to SB 51 cm)

GKV assistive product numbers:
Caneo E (SB 36 - 45 cm): 18.50.02.2108
Caneo E (SB 48 - 51 cm): 18.50.02.3030

Options / Accessories:

  • Headrest
  • Back: Adjustable back
  • Side section: height adjustable
  • Arm rests: for hemiplegics (flat / ergonomic), arm rest extension
  • Legrests: horizontally adjustable, angle adjustable, amputation legrest
  • Drive: one-hand drive
  • Handrims: Handrim cover
  • Wheels: wheelbase extension (+7 cm)
  • Tyres: drive wheels: pneumatic tyres; steering wheels: pneumatic tyres
  • Brake: one-hand brake, brake lever extension
  • Other: Anti-tip device, therapy table, lap belt, power knot system, folding lock

ICF Items

Reference Number:

IW/122203.434


Source :

IW


Last Update: 4 Jan 2022
