Assistive Product Motus CV | Motus CS

Product Type:

wheelchair, manually controlled wheelchair, adaptive wheelchair
foldable

Description:

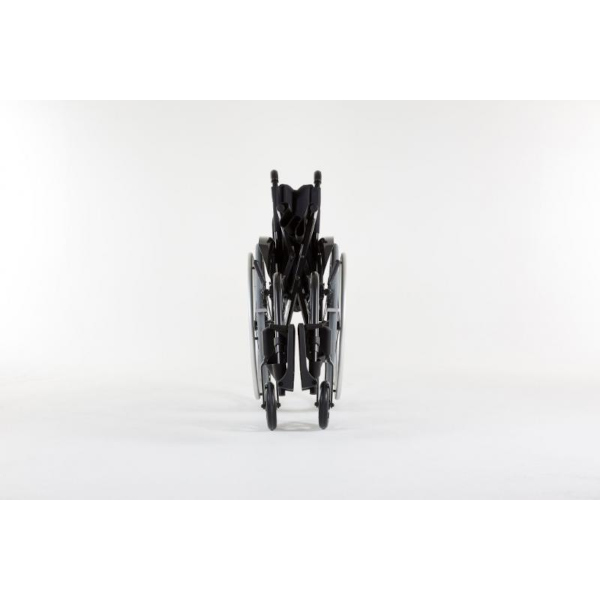

The Motus wheelchair is a foldable adaptive wheelchair with cross brace technology. The Motus wheelchair offers many adaptation possibilities. It is available in the versions CV (front frame for removable leg supports) and CS (closed front frame with integrated one-piece footrest).

Features / Components:

  • Frame: Tubular aluminium frame with cross brace, foldable
  • Back: selectable back height, back tubes height adjustable, adjustable back upholstery, lumbar bend
  • Seat dimensions: selectable seat width, seat depth and seat height
  • Footrests (CV): split, footrest medium / long / extra long, angle adjustable
  • Footrests (CS): one-piece, integrated in front frame, angle adjustable
  • Drive: push rim drive
  • Push rims: Aluminium
  • Wheels: selectable wheel sizes, selectable wheel camber, drive wheels with hollow section rims and thru axles
  • Tyres: choice of solid rubber tyres or pneumatic tyres for the steering wheels, various tyres for the drive wheels, whitewall tyres / PU tyres (CS only)
  • Brake: knee lever brake
  • Colour: frame: various colours available; cover: black

Price (without guarantee):

Motus CV / Motus CS: 1.800,00 EUR plus VAT. (recommended retail price)

SHI-Number:

SHI-Medical Technical Aids Register | 18.50.03.0165 | 18.50.03.0187

Product Information from the Manufacturer / Distributor:

Further Product Details

REHADAT does not sell any products

Please contact the manufacturer or distributor.

Manufacturer:

Otto Bock Manufacturing Königsee GmbH
Lindenstr. 13
07426 Königsee
Germany Telephone: 036738 79-0 Homepage: https://www.ottobock.de

Distributor:

Otto Bock HealthCare Deutschland GmbH
Max-Näder-Str. 15
37115 Duderstadt
Germany Telephone: 05527 848-0 Email: digitalesmarketing@ottobock.de Homepage: https://www.ottobock.de

Örtliche Sanitätshäuser und Orthopädie-technische Fachbetriebe
Homepage: https://biv-ot.org/ueber_uns/mitglieder/sanitaetshausdatenbank/index_ger.html

Technical Data:

Overall width: 52 - 72 cm (standard) / 55.5 - 75.5 cm (with drum brake)
Overall length: 80.5 - 110 cm
Seat width: 35.5 - 55.5 cm
Seat depth: 36 - 54 cm
Front seat height: 42 - 52 cm
Rear seat height: 36 - 52 cm
Back height: 30 - 50 cm
Folding dimensions (W x L x H): 32 - 35.5 x 80.5 - 111 x 73 - 109 cm
Drive wheels: 22 / 24 inch
Camber: 0 / 1 / 2.5 / 3.5 degrees
Steering wheels: 4 / 5 / 5.5 / 6 / 7 inches
Weight: from 12 kg
Load capacity: 125 / 140 kg (depending on seat width)

SHI assistive product numbers:
Motus CV: 18.50.03.0165
Motus CS: 18.50.03.0187

Options / Accessories:

  • Push handles: telescopic, height adjustable / removable, foldable
  • Back: angle adjustable by 30 degrees)
  • Seat: adjustable upholstery, various seat cushions
  • Side section: with armrest, height adjustable, short or long, plug-in
  • Armrests: padded, height adjustable
  • Leg rests (CV): swivel up, angle adjustable, continuous or split
  • Leg rest (CS): angle adjustable
  • Foot rests: split, angle adjustable, continuous, amputation leg rest left / right, swivel up
  • Drive: single hand drive
  • Handrims: Double handrims, rubberized, stainless steel, titanium, top grip, ergonomic solution
  • Wheels: wheelbase extension
  • Tyres: steering wheels: aluminium soft castors; drive wheels (CS only): Schwalbe Marathon Plus
  • Brake: Drum brake for attendant, brake lever extension, scissor brake, attendant brake
  • Other: anti-tipper, adapter for small / large front seat height, transit wheels, tipping aid, therapy table

ICF Items

Reference Number:

IW/122203.315


Source :

IW


Last Update: 27 Jul 2021
