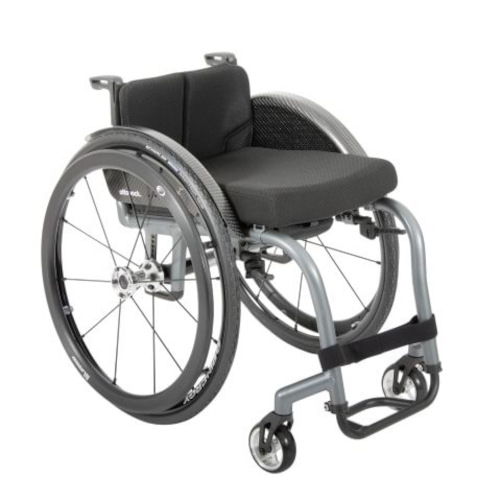

Assistive Product Zenit R | Zenit R CLT

Product Type:

Push rim wheelchair
Adaptive wheelchair with rigid frame

Description:

The Zenit is an active wheelchair with various adaptation options. It is also available as Zenit R CLT with fixed welded components.

Features / Components:

  • Frame: Rigid frame, aluminum, straight, selectable frame crank, fixed welded (CLT).
  • Push handles: rigid / foldable (CLT), long / short
  • Back: adjustable backrest upholstery, selectable backrest height, padded, widening of backrest upholstery (+2 cm / +4 cm), firmly welded (CLT)
  • Seat: tensionable seat upholstery
  • seat dimensions: selectable seat width, selectable seat depth
  • Footrests: aluminum, one-piece, rigid
  • Drive: handrim drive
  • handrims: Anodized aluminum, polished stainless steel, high / low, mounting narrow / wide
  • Wheels: selectable wheel camber, hollow chamber rims
  • Tires: steering wheels: solid rubber, air; drive wheels: Schwalbe RightRun, PU
  • Brake: knee lever brake
  • Other: thru axle, calf strap, tipping aid, anti-tipper
  • Color: various frame colors, matt anodized

Price (without guarantee):

Zenit R: 2.980,00 EUR
Zenit R CLT: 4.060,00 EUR

The prices are recommended retail prices plus VAT.

SHI-Number:

SHI-Medical Technical Aids Register | 18.50.03.5041

Product Information from the Manufacturer / Distributor:

Zenit R
Zenit R CLT

REHADAT does not sell any products

Please contact the manufacturer or distributor.

Manufacturer:

Otto Bock HealthCare Deutschland GmbH
Max-Näder-Str. 15
37115 Duderstadt
Germany Telephone: 05527 848-0 Email: digitalesmarketing@ottobock.de Homepage: https://www.ottobock.de

Distributor:

Otto Bock HealthCare Deutschland GmbH
Max-Näder-Str. 15
37115 Duderstadt
Germany Telephone: 05527 848-0 Email: digitalesmarketing@ottobock.de Homepage: https://www.ottobock.de

Sanitäts-Fachhandel oder orthopädie-technischer Fachbetrieb
Adressen bitte im Internet recherchieren.
Homepage: https://biv-ot.org/ueber_uns/mitglieder/sanitaetshausdatenbank/index_ger.html

Technical Data:

Total width: 49.5-71 cm
Overall length: 64-104 cm
Seat width: 32-46 cm
Seat depth: 36-50 cm
Seat height front: 38-54 cm
Seat height back: 37-50 cm
Back height: 25-50 cm
Drive wheels: 24 / 25 inch
Wheel camber: 0 / 3 / 3 / 4 degrees
Steering wheels: 4 / 5 / 5,5 / 6 inch
Weight: from 8,5 kg / from 7,4 kg (CLT)
Load capacity: 120 kg / 100 kg (CLT)
Frame cranking: 0 / 2 cm

Options / Accessories:

  • Frame: Carbon, front frame extension, angle adjustable, foldable.
  • Push handles: height adjustable / removable, foldable
  • Back: breathable back cover, BAXX aluminum back system
  • Side panels: Carbon
  • Armrests: short / long
  • Footrests: carbon, continuous
  • Handrims: Rubberized, anodized, ergonomic
  • Wheels: various drive wheel rims
  • Tires: Steering wheels: Softroll aluminum; Drive wheels: Schwalbe ONE, Schwalbe Marathon Plus
  • Brake: scissor brake, brake lever extension
  • Other: style package, thru axle with tetra release, various seat cushions
  • Color: frame: various frame colors

ICF Items

Reference Number:

Hil134811


Source :

IW


Last Update: 2 Jun 2025
