Assistive Product immer-mobil 110 | immer-mobil 140 | immer-mobil 120 T | immer-mobil 145 DE

Product Type:
Power wheelchair with rear-wheel drive
Use: Indoors

Description:

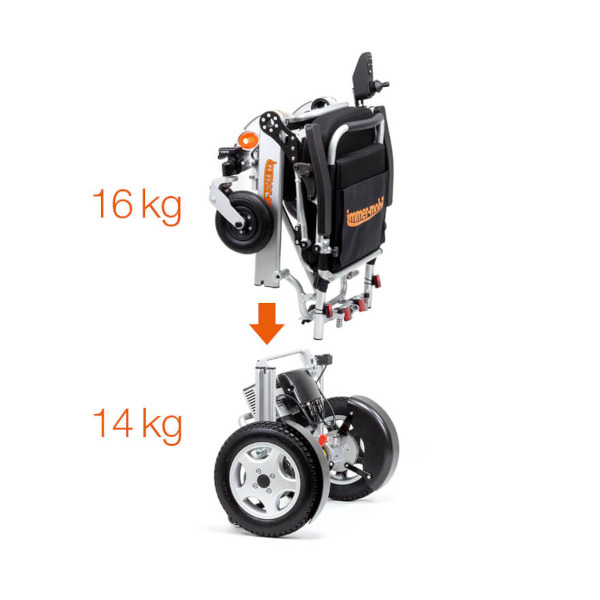

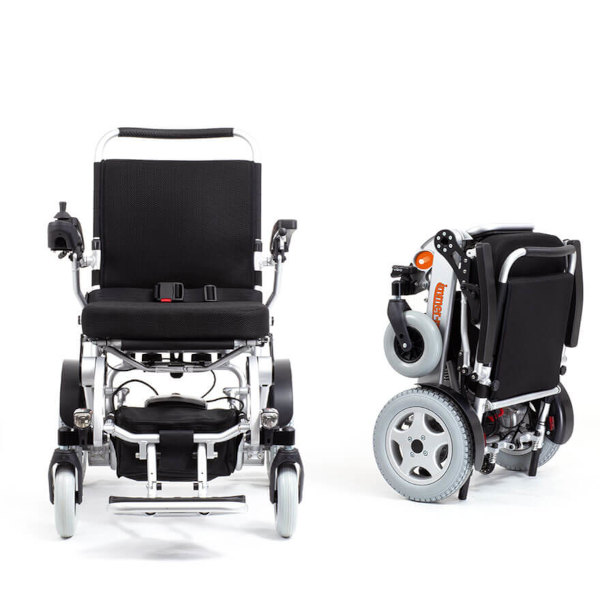

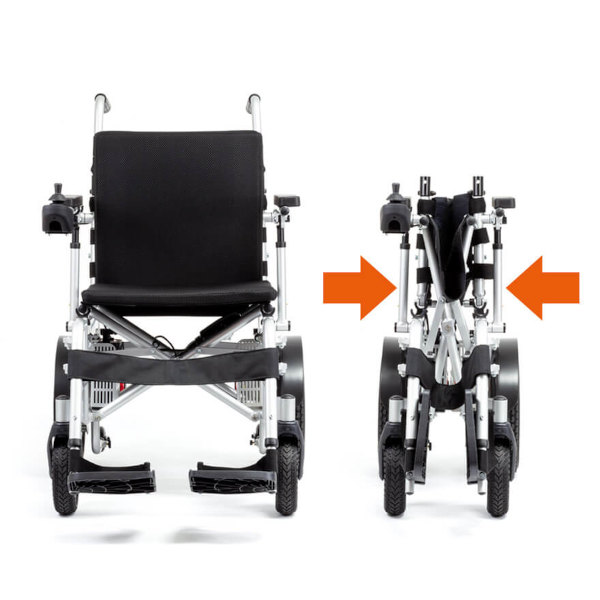

The Help-24 power wheelchairs always-mobile 110, 140 and 120 T are foldable and have a load capacity of 110 kg (110), 120 (120 T), 140 kg (140) and 145 kg (145 DE). They have anti-tip protection and adjustable footrests as standard. The immer-mobil 100 and the 120 T are suitable for indoor use, while the immer-mobil 140 and the immer-mobil 145 DE are also suitable for outdoor use. When folded, the immer-mobil 120 T can be pushed manually or driven electrically. The immer-mobil 145 DE is technically the same as the 140, but can also be dismantled into two parts.

Features / components:

• Frame: Aluminum, foldable (120 T) / demountable (145 DE)
• Push bar (110, 140, 145 DE) / push handles (120 T)
• Back: upholstered, height-adjustable (only 140, 145 DE), angle-adjustable (only 120 T), foldable (110, 140)
• Seat: upholstered
• Armrests: upholstered, can be swiveled down (140)
• Control: joystick control
• Footrests: one-piece (110, 140, 145 DE) / split (120 T), swing-away (140, 110), height-adjustable (140, 110)
• Wheels: suspension (145 DE)
• Rear wheels with tires: Pneumatic tires (140, 120 T, 145 DE) , PU tires (110); tires front wheels: Pneumatic tires (140, 120 T, 145 DE), PU tires (110)
• Brake: Engine brake
• Drive: Rear-wheel drive
• Batteries: Lithium-ion batteries, 1 x (110, 120 T) / 2 x (140, 145 DE), removable
• Charger
• Lighting: active lighting system (140, 145 DE)
• Other: anti-tip device
• Color frame: grey; color cover: black

always-mobile 110 always-mobile 140 always-mobile 120 T always-mobile 145 DE
Overall width:                                      59 cm 62 cm 62 cm 62 cm
Overall length: 100 cm 106 cm 103 cm 108 cm
Overall height:                                       95 cm 91 - 111 cm 97 cm 91 - 111 cm
Seat width: 44 cm 45 cm 45 cm 45 cm
Seat depth: 43 cm 44 cm 44 cm 44 cm
Seat height: 52 cm 53 cm 49 cm 53 cm
Seat tilt: 1 degree 4 degrees 1 degree 4 degrees
Back height:                                       43 cm 41 - 59 cm 41 cm 41 - 59 cm
Back angle: 10 degrees 14 degrees 4 / 13 / 22 degrees 9 degrees
Rear wheels: 10 inches 12 inches 12 inches 12 inches
Front wheels: 8 inches 8 inches 8 inches 8 inches
Top speed: 6 km/h 6 km/h 6 km/h 6 km/h
Batteries:
24 V 10 Ah (1x) 24 V 10 Ah (2x) 24 V 7.5 Ah (1x) 24 V 10 Ah (2x)
Range: 15 km 30 km 11 km 30 km
Climbing ability: 16 percent 25 percent 18 percent 25 percent
Weight: from 24 kg from 27 kg from 25 kg from 30 kg
Load capacity: 110 kg 140 kg 120 kg 145 kg

• Headrest (110, 140, 145 DE)
• Seat: seat cushion
• Seat dimensions: seat width extension
• Armrests: widened
• Controls: attendant control, joystick attachments
• Footrests: split (140, 145 DE)
• Tyres: PU tyres (120 T, 140, 145 DE)
• Batteries: Additional battery
• Other: Electric stand-up aid

Price (without guarantee):

SHI-Number:

SHI-Medical Technical Aids Register | 18.46.06.0007 | 18.50.07.0001 | 18.50.07.0005 | 18.50.07.0018
