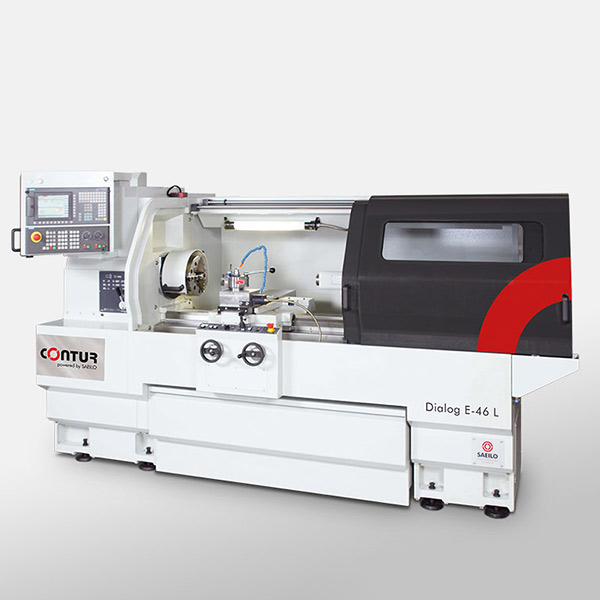

Assistive Product Zyklendrehmaschine Contur Dialog E-46 (L)
Product Type:
Cycle lathe with CNC control
Areas of Application:
for example
- when physical strength is limited
- to relieve the musculoskeletal system
Description:
The compact, user-friendly machine can be used to compensate for limited physical strength. It combines the advantages of conventional and CNC-controlled machines. In manual company mode, the machine works like a conventional lathe. Depending on requirements, the degree of automation can be increased to full CNC operation, which is suitable for single part production and small series production.
Features / Components:

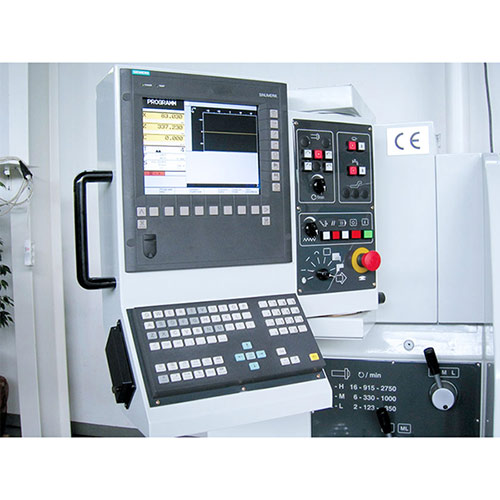

- CNC control SIEMENS 828D Basic with ShopTurn
- 3 gear stages
- both axes with AC drives and ball screws
- 8.5'' color screen
- constant cutting speed
Price (without guarantee):
The price is available on request from the manufacturer / distributor.
Product Information from the Manufacturer / Distributor:
Further Product DetailsREHADAT does not sell any products
Please contact the manufacturer or distributor.
Manufacturer:
SAEILO GmbH
Hauptstr. 68
35585 Wetzlar-Blasbach
Germany
Telephone:
06446 9247-0
Email:
info@saeilo.de
Homepage:
https://www.saeilo.de
Distributor:
SAEILO GmbH
Hauptstr. 68
35585 Wetzlar-Blasbach
Germany
Telephone:
06446 9247-0
Email:
info@saeilo.de
Homepage:
https://www.saeilo.de
Technical Data:
Swing diameter over bed: 46 cm
Swing diameter over slide: 25 cm
Center distances: 930 / 1430 mm
Gear stages: 3
Traverse paths X x Z-axis: 21 x 80 / 130 cm
Spindle drive: 10 kW AC
Spindle bore: 58 / 78
Spindle speed range: 40-3000 (-2500) rpm
Net machine weight: approx. 1850 / 2470 kg
Swing diameter over slide: 25 cm
Center distances: 930 / 1430 mm
Gear stages: 3
Traverse paths X x Z-axis: 21 x 80 / 130 cm
Spindle drive: 10 kW AC
Spindle bore: 58 / 78
Spindle speed range: 40-3000 (-2500) rpm
Net machine weight: approx. 1850 / 2470 kg
Reference Number:
IW/271598.027
Source :
IW
Last Update: 22 Jan 2025
