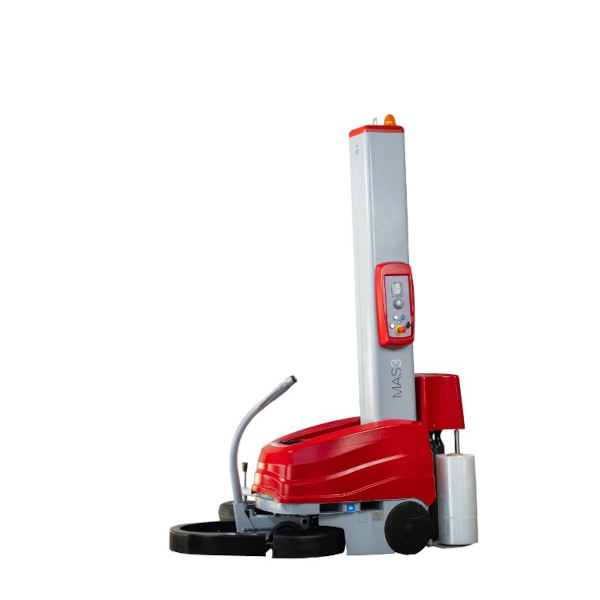

Assistive Product Stretchrobot MAS

Product Type:

Mobile film wrapper / pallet wrapper

Areas of Application:

for example to relieve the musculoskeletal system

Description:

The machine moves around the stationary pallet and wraps the pallet load. Different pallet profiles are also processed automatically. This enables mobile use at different workplaces.

Features / Components:

  • automatic cycle sequence
  • 4 program memory locations
  • wrapping programs: Cross spiral, spiral, rain seal program, banderole wrapping at a specified height, cross spiral without photocell by pallet height input in cm, program for oversized pallets
  • 2 adjustable lifting carriage speeds: different for upward and downward movement
  • Number of foot and head windings: adjustable
  • Electromagnetic brake as dry disc clutch for film stretching
  • Photocell for automatic height query
  • Overwinding on the pallet head: adjustable
  • Manual functions for machine forward / back
  • Battery charger: built-in
  • Acoustic warning signal: at start
  • Visual warning signal (flashing light): when the machine is in operation

Price (without guarantee):

The price is based on the customer's individual requirements.

Product Information from the Manufacturer / Distributor:

Further Product Details

REHADAT does not sell any products

Please contact the manufacturer or distributor.

Manufacturer:

PSE Verpackungstechnologie GmbH
Lütticher Str. 4
53842 Troisdorf
Germany Telephone: 02241 252830 Email: info@pse-verpackung.de Homepage: https://pse-verpackung.de

Distributor:

PSE Verpackungstechnologie GmbH
Lütticher Str. 4
53842 Troisdorf
Germany Telephone: 02241 252830 Email: info@pse-verpackung.de Homepage: https://pse-verpackung.de

Technical Data:

Dimensions (L x W x H): 2220 x 720 x 2450 mm
Pallet length: from 800 mm
Pallet width: from 800 mm
Pallet height max.2000 mm
Pallet dimensions: + 1150 mm on all sides
Capacity: approx. 200 pallets
Max. speed: 80 km/h: 80 km/h
Voltage: 230V, 1Ph+N+PE, 50Hz, 16A
Battery: 24 V, 100 AH
